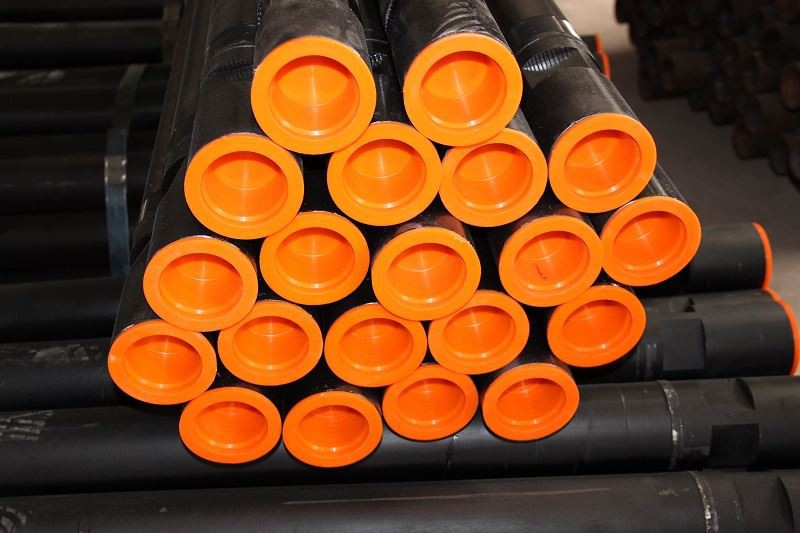

89mm Water Well Drilling Pipes
video
89mm Water Well Drilling Pipes

89mm Water Well Drilling Pipes

Products Description Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools....
Products Description



Drill pipe diameter(mm)

Drill pipe length(mm)

Thread type

Weight(KG)

76

1500

API 2 3/8"REG

23.5

76

3000

API 2 3/8"REG

38

76

6000

API 2 3/8"REG

45

89

1500

API 2 3/8"IF

28

89

3000

API 2 3/8"IF

46

89

6000

API 2 3/8"IF

88

102

1500

API 2 7/8"IF

38

102

3000

API 2 7/8"IF

65

102

6000

API 2 7/8"IF

119



c18a109f64befbff2660e65f692aae4

Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.

According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 102mm, 114mm.

Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 6000mm length of pipe are available.

Specification :

1.Reliable working performance

2.Outside Size:60mm,76mm,89mm,114mm,140mm

3.Thread:API Reg

4.Wall Thickness: 5.5/6.5mm/7.5/8.5mm/10mm



About ESUN



As a seasoned manufacturer specializing in rock drilling equipment and associated tools, we export our range of rock drills, down-the-hole drills, top hammer drills, rotary drilling rigs, and water well drilling rigs to international markets. These products find widespread applications in bridge infrastructure, tunnel excavation, mining, water well construction, and urban transportation projects.

Moreover, we function as an established provider of engineering solutions, contributing to making global trade more efficient, intelligent, and sustainable. At Angola, we collaborate closely with strategic partners to deliver adaptable solutions tailored to our clients' specific requirements. Our strategic partners bring decades of expertise in the Oil & Gas sector, bridge infrastructure, tunnel excavation, mining, and various construction industries, ensuring comprehensive and effective project solutions.
