Rotary Drill Bits For Mining

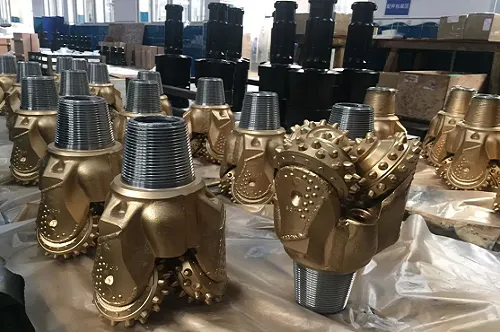

Tricone bits - Verified in the lab, for superior performance in the field.

Our tricone bits product line promises the highest performance, reliability, and availability. This effectively results in a lower drilling cost. With sealed bearing product line, takes the guess work out of drilling. Our bits are designed to increase bit life even further where the application presents restrictions to drilling.

1. Elasticity Sealed Roller Bearing Bit
Cutting Structure: The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth surfaces for steel tooth bit.
Gauge Structure: Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard facing on the shirttail increases gauge holding capability and bearing life.
Sealed Bearing Structure: 1. Abrasion resistance and seizure resistance of the bearing are improved. 2. Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance.

2. Air Cooling Roller Bearing Steel Tooth Bit
Cutting Structure: The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth surfaces for steel tooth bit
Gauge Structure: Gauge protection with gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard facing on the shirttail increases gauge holding capability.
Sealed Bearing Structure: Air cooling roller bearing package. Balls lock the cone which reduces the probability of cone-dropping to minimum.

Specifications: HKX532-200( 7 7/8" IADC532 )

Applications

Application for drilling in soft formations with low compressive strength and high drill ability, such as shale, soft limestone,soft dolomite and coal bed,etc..(Protodikonov's Hardness Coefficient of Rock f=9)
Parameters:

IACD CODE: 532

Bearing structure: Roller-Ball-Second Thrust-Roller-First Thrust/Sealing, abrasion-resistance carbide button insert on the bearing surface.

Circulation Type: Jet Air

Cutting Structure:

-Inner Rows: Ballistic

-Gage Rows: Ballistic

-Gage Bevel Protection: Flat

Pin connection: 4 1/2" REG(API)

Nozzel: Φ17or Φ19mm(3 pcs)lnterchangeable

Metric Bit Diameter: 200mm

Product Weight: 32 KG

Bit Legs Protection:

Bit Legs Protection Carbide alloy button insert on the legs' surface.

Operating Suggestions:

Weight on Bit: 15000-36000 Lbs

Rotary Speed: 120-80 RPM

Air Back Pressure: 0.2-0.4 Mpa

As a seasoned manufacturer specializing in rock drilling equipment and associated tools, we export our range of rock drills, down-the-hole drills, top hammer drills, rotary drilling rigs, and water well drilling rigs to international markets. These products find widespread applications in bridge infrastructure, tunnel excavation, mining, water well construction, and urban transportation projects.

Moreover, we function as an established provider of engineering solutions, contributing to making global trade more efficient, intelligent, and sustainable. At Angola, we collaborate closely with strategic partners to deliver adaptable solutions tailored to our clients' specific requirements. Our strategic partners bring decades of expertise in the Oil & Gas sector, bridge infrastructure, tunnel excavation, mining, and various construction industries, ensuring comprehensive and effective project solutions.
